Place of Origin: | China |
---|---|
Brand Name: | OUQI |
Certification: | ISO9001:2008 ISO14001:2004 |
Model Number: | Unground Carbide Rods |
Minimum Order Quantity: | 1pc |
Price: | negotiable |
Packaging Details: | plastic box/box + Cartons |
Delivery Time: | Standard products in 3 DAYS |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 5000kgs per month |
Material: | Tungseten Carbide | ISO Grade: | K30/K40 |
---|---|---|---|
Diameter: | D21.5mm | Leght: | 330mm |
Tolerance: | Length +5mm, OD +0.5mm | Surface Roughness: | Ra 6.3 |
Circularity: | 0.2-0.5 | Straightness: | 0.2-0.5 |
Cobalt: | 10-12% | Hardness: | 92-92.5 |
T.R.S: | 3800-4000 | Grain Size: | 0.6-0.8 |
High Light: | 21.5mm Carbide Unground Rods,K30 Carbide Unground Rods,K40 Titanium Carbide Rod |

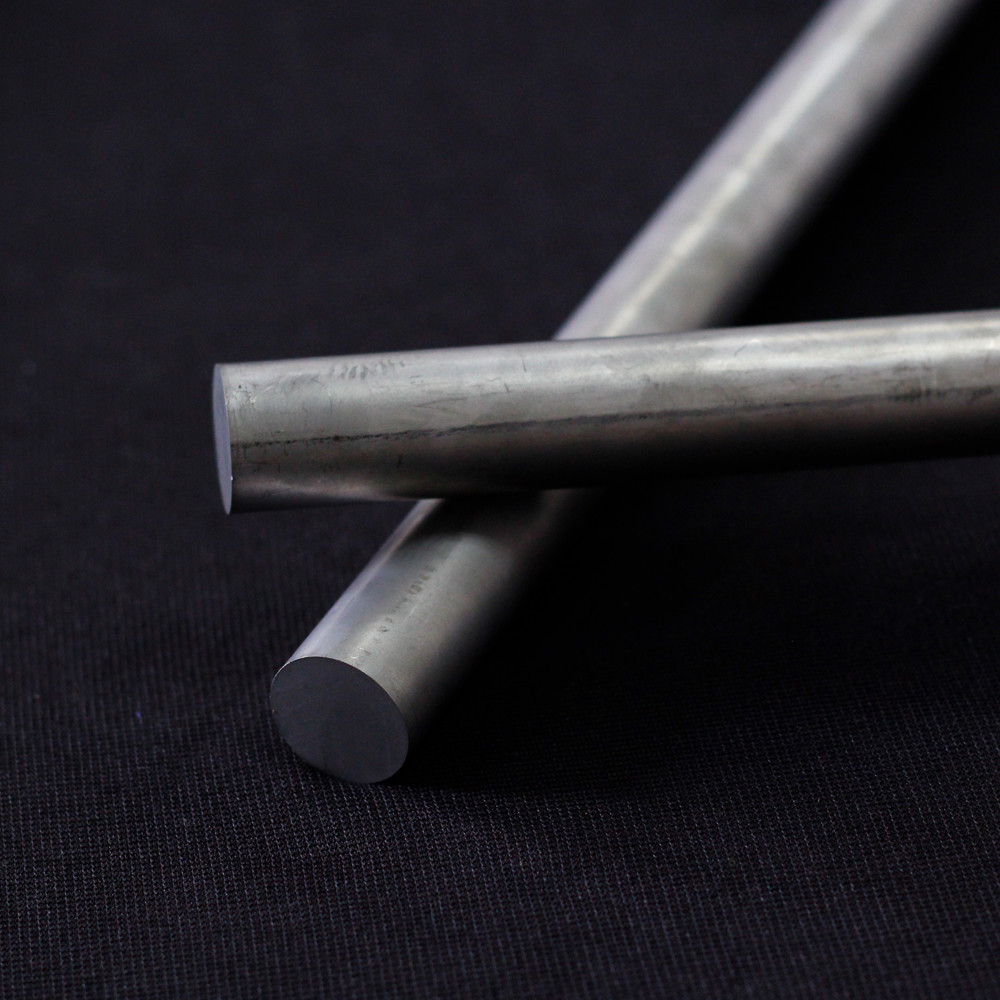

OD21.5mm Ultrafine grain size Unground carbide rod for Titanium alloy
ISO Grade |
Grain | Cobalt | Density | Hardness | T.R.S | Application |
um | % | g/cm3 | HRA | N/mm2 | ||
K30-K40 | 0.6 | 10-12 | 14.1-14.2 | 92-92.5 | 3800-4000 | Ultrafine grain size, high cobalt, good hardness and toughness, used for making endmill and reamer, especially suitable for cutting steel, aluminum alloy, and titanium. |
Specification:
Unground Diameter: 21.5mm +0.5
Length 330mm +5mm or as required
ISO grade K30/K40
Grain size: 0.6μm
Density: 14.1-14.2
Applications:
Ultrafine grain size, high cobalt, good hardness and toughness, used for making endmill and reamer, especially suitable for cutting steel, aluminum alloy, and titanium.
General tolerance for the raw sintered solid carbide rods | |||||||
Diameter | Tolerance | Length | Tolerance | Straightness | Tolerance | ||
0,5- 3,5 | +0,25/+0,35 | <100.0 | +0.5/+1.0 | 0,6-4 | 0,10 | ||
4,0- 6,0 | +0,25/+0,40 | 100.0-165.0 | +1.0/+2.5 | 4,5-8 | 0,12 | ||
6,5-12,0 | +0,30/+0,45 | 165.0-335.0 | +1.0/+6.0 | 8,5-12,0 | 0,15 | ||
12,5-16,0 | +0,35/+0,50 | 12,5 - 20 | 0,20 | ||||
16,5- 22,0 | +0,40/+0,55 | ≥20,5 | 0,24 | ||||
22,5-45,0 | +0,45/+0,60 |
Description:
Diameter mm | Length mm | Diameter mm | Length mm | |||||
D | Tolerance | Length | Tol. | D | Tolerance | Length | Tol. | |
1.16 | -0/+0.15 | 330 | 0/+0.5 | 16.20 | -0/+0.45 | 330 | 0/+0.5 | |
1.65 | 330 | 0/+0.5 | 17.20 | 330 | 0/+0.5 | |||
1.80 | 330 | 0/+0.5 | 18.20 | 330 | 0/+0.5 | |||
2.20 | -0/+0.20 | 330 | 0/+0.5 | 19.20 | 330 | 0/+0.5 | ||
2.70 | 330 | 0/+0.5 | 20.20 | 330 | 0/+0.5 | |||
3.25 | 330 | 0/+0.5 | 21.20 | -0/+0.55 | 330 | 0/+0.5 | ||
3.70 | 330 | 0/+0.5 | 22.20 | 330 | 0/+0.5 | |||
4.20 | 330 | 0/+0.5 | 23.20 | 330 | 0/+0.5 | |||
4.70 | 330 | 0/+0.5 | 24.2 | 330 | 0/+0.5 | |||
5.20 | -0/+0.25 | 330 | 0/+0.5 | 25.2 | -0/+0.65 | 330 | 0/+0.5 | |
5.70 | 330 | 0/+0.5 | 26.2 | 330 | 0/+0.5 | |||
6.20 | 330 | 0/+0.5 | 28.2 | 330 | 0/+0.5 | |||
6.70 | 330 | 0/+0.5 | 30.2 | 330 | 0/+0.5 | |||
7.20 | -0/+0.35 | 330 | 0/+0.5 | 32.2 | 330 | 0/+0.5 | ||
7.70 | 330 | 0/+0.5 | ||||||
8.20 | 330 | 0/+0.5 | ||||||
8.70 | 330 | 0/+0.5 | ||||||
9.20 | 330 | 0/+0.5 | ||||||
9.70 | 330 | 0/+0.5 | ||||||
10.20 | 330 | 0/+0.5 | ||||||
10.70 | 330 | 0/+0.5 | ||||||
11.20 | 330 | 0/+0.5 | ||||||
11.70 | 330 | 0/+0.5 | ||||||
12.20 | 330 | 0/+0.5 | ||||||
12.70 | 330 | 0/+0.5 | ||||||
13.20 | 330 | 0/+0.5 | ||||||
13.70 | 330 | 0/+0.5 | ||||||
14.20 | 330 | 0/+0.5 | ||||||
14.70 | 330 | 0/+0.5 | ||||||
15.20 | 330 | 0/+0.5 | ||||||
15.70 | 330 | 0/+0.5 |
Grades for tungsten carbide rods:
