Place of Origin: | China |
---|---|
Brand Name: | OUQI |
Certification: | ISO 9001: 2015 |
Model Number: | Unground Carbide Rods |
Minimum Order Quantity: | 10pc |
Price: | negotiable |
Packaging Details: | plastic box/box + Cartons |
Delivery Time: | Standard products in one week |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 5000kgs per month |
Material: | Tungseten Carbide | ISO Grade: | K40/K50 |
---|---|---|---|
Diameter: | D17.3mm | Leght: | 330mm |
Tolerance: | Length +5mm, OD +0.5mm | Surface Roughness: | Ra 6.3 |
Circularity: | 0.2-0.5 | Straightness: | 0.2-0.5 |
Cobalt: | 12% | Hardness: | HRA 92.5 |
T.R.S: | 4200 | Grain Size: | 0.4 |
High Light: | Unground Tungsten Carbide Rod Blanks,0.4μM Tungsten Carbide Rod Blanks,Alloy Steel Tungsten Carbide Bar |

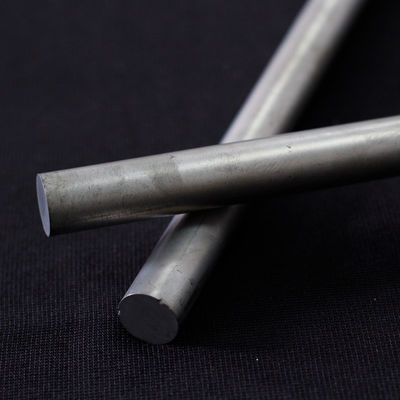

Ultrafine grain size 0.4μm unground tungsten carbide rods for processing alloy steel
ISO | Grain size | Cobalt | Density | Hardness | T.R.S | k1C | Applications |
Code | μm | % | g/cm3 | HRA | N/mm2 | Mpa.m1/2 | |
K40-K50 | 0.4 | 12 | 14.12 | 92.5 | 4200 | 10.2 | Ultra-fine grain size, with good wear resistance and toughness, especially suitable for finishing and processing alloy steel, aluminum alloy, titanium alloy, etc. Suitable for making end mills and reamer. |
Specification:
Unground Diameter: 17.3mm +0.5
Length 330mm +5mm or as required
ISO grade K40/K50
Grain size: 0.4μm
Applications:
Ultra-fine grain size, with good wear resistance and toughness, especially suitable for finishing and processing alloy steel, aluminum alloy, titanium alloy, etc. Suitable for making end mills and reamer
General tolerance for the raw sintered solid carbide rods | |||||||
Diameter | Tolerance | Length | Tolerance | Straightness | Tolerance | ||
0,5- 3,5 | +0,25/+0,35 | <100.0 | +0.5/+1.0 | 0,6-4 | 0,10 | ||
4,0- 6,0 | +0,25/+0,40 | 100.0-165.0 | +1.0/+2.5 | 4,5-8 | 0,12 | ||
6,5-12,0 | +0,30/+0,45 | 165.0-335.0 | +1.0/+6.0 | 8,5-12,0 | 0,15 | ||
12,5-16,0 | +0,35/+0,50 | 12,5 - 20 | 0,20 | ||||
16,5- 22,0 | +0,40/+0,55 | ≥20,5 | 0,24 | ||||
22,5-45,0 | +0,45/+0,60 |
Description:
Diameter mm | Length mm | Diameter mm | Length mm | |||||
D | Tolerance | Length | Tol. | D | Tolerance | Length | Tol. | |
1.16 | -0/+0.15 | 330 | 0/+0.5 | 16.20 | -0/+0.45 | 330 | 0/+0.5 | |
1.65 | 330 | 0/+0.5 | 17.20 | 330 | 0/+0.5 | |||
1.80 | 330 | 0/+0.5 | 18.20 | 330 | 0/+0.5 | |||
2.20 | -0/+0.20 | 330 | 0/+0.5 | 19.20 | 330 | 0/+0.5 | ||
2.70 | 330 | 0/+0.5 | 20.20 | 330 | 0/+0.5 | |||
3.25 | 330 | 0/+0.5 | 21.20 | -0/+0.55 | 330 | 0/+0.5 | ||
3.70 | 330 | 0/+0.5 | 22.20 | 330 | 0/+0.5 | |||
4.20 | 330 | 0/+0.5 | 23.20 | 330 | 0/+0.5 | |||
4.70 | 330 | 0/+0.5 | 24.2 | 330 | 0/+0.5 | |||
5.20 | -0/+0.25 | 330 | 0/+0.5 | 25.2 | -0/+0.65 | 330 | 0/+0.5 | |
5.70 | 330 | 0/+0.5 | 26.2 | 330 | 0/+0.5 | |||
6.20 | 330 | 0/+0.5 | 28.2 | 330 | 0/+0.5 | |||
6.70 | 330 | 0/+0.5 | 30.2 | 330 | 0/+0.5 | |||
7.20 | -0/+0.35 | 330 | 0/+0.5 | 32.2 | 330 | 0/+0.5 | ||
7.70 | 330 | 0/+0.5 | ||||||
8.20 | 330 | 0/+0.5 | ||||||
8.70 | 330 | 0/+0.5 | ||||||
9.20 | 330 | 0/+0.5 | ||||||
9.70 | 330 | 0/+0.5 | ||||||
10.20 | 330 | 0/+0.5 | ||||||
10.70 | 330 | 0/+0.5 | ||||||
11.20 | 330 | 0/+0.5 | ||||||
11.70 | 330 | 0/+0.5 | ||||||
12.20 | 330 | 0/+0.5 | ||||||
12.70 | 330 | 0/+0.5 | ||||||
13.20 | 330 | 0/+0.5 | ||||||
13.70 | 330 | 0/+0.5 | ||||||
14.20 | 330 | 0/+0.5 | ||||||
14.70 | 330 | 0/+0.5 | ||||||
15.20 | 330 | 0/+0.5 | ||||||
15.70 | 330 | 0/+0.5 |
Grades for tungsten carbide rods:
