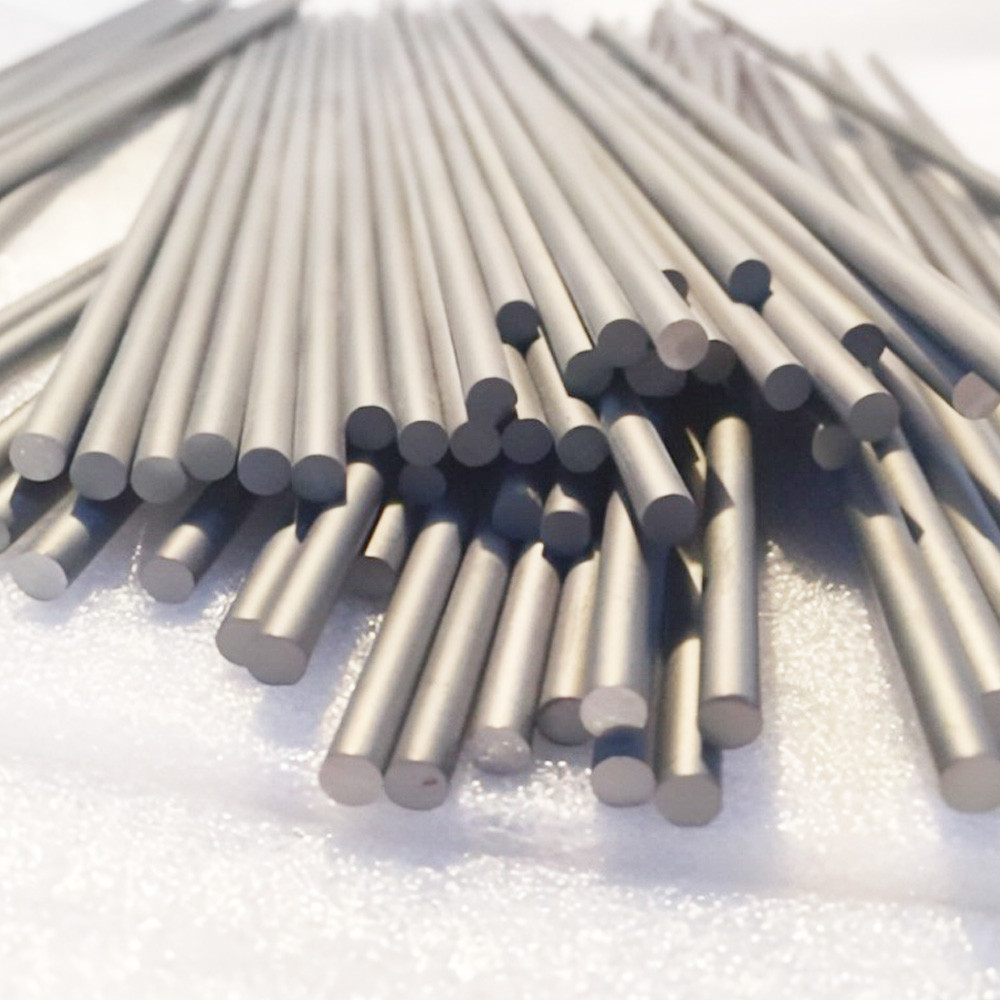

Cut To Length Ground Carbide Rods OD 6mm Length 150mm For Cast Iron

Cut To Length Ground Carbide Rods OD 6mm Length 150mm For Cast Iron
Cut To Length Ground Carbide Rods OD 6mm Length 150mm For Cast Iron Cut To Length Ground Carbide Rods OD 6mm Length 150mm For Cast Iron Cut To Length Ground Carbide Rods OD 6mm Length 150mm For Cast Iron Cut To Length Ground Carbide Rods OD 6mm Length 150mm For Cast Iron Cut To Length Ground Carbide Rods OD 6mm Length 150mm For Cast Iron Cut To Length Ground Carbide Rods OD 6mm Length 150mm For Cast Iron
Basic Information
Place of Origin: China
Brand Name: OUQI
Certification: ISO9001:2008 ISO14001:2004
Model Number: Ground carbide rods
Minimum Order Quantity: 10pc
Price: negotiable
Packaging Details: plastic box/box + Cartons
Delivery Time: Standard products in one week
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000kgs per month
Get Best Price Contact Now
Material: 10% Cobalt ISO Grade: K20-k40
Diameter: 6mm Leght: 150mm
Tolerance: H6/h5 Or As Required Surface Roughness: Ra 0.05
Circularity: 0.02 Or 0.05 Straightness: 0.02 Or 0.05
Density: 14.45 Hardness: HV30 1620
T.R.S: 4100 Grain Size: 0.6
High Light:

Cut To Length Ground Carbide Rods

,

Cast Iron Ground Carbide Rods

Cut to length OD6mm Length 150mm ground carbide rods K20-K40 for cast iron



Diameter:6mm h6 -0.008

Length: 150mm +0.5

Roughness: Ra 0.2



Classification K20-K40
Co % 10
WC incl. doping 90
Density g/ cm3 14.45
Hardness HV30 1620
Fracture toughness 10.6
Transverse rupture strength 4100
Average grain size 0.6



Cut To Length Ground Carbide Rods OD 6mm Length 150mm For Cast Iron 0



Regular size for ground carbide rods:

Cut To Length Ground Carbide Rods OD 6mm Length 150mm For Cast Iron 1



Diameter (mm) Length (mm)   Diameter (mm) Length (mm)
D Tolerance Length Tol.   D Tolerance Length Tol.
1.00 +0/-0.006 330 0/+0.5   10.50 +0/-0.011 330 0/+0.5
1.50 330 0/+0.5   11.00 330 0/+0.5
2.00 330 0/+0.5   11.50 330 0/+0.5
2.50 330 0/+0.5   12.00 330 0/+0.5
3.00 330 0/+0.5   12.50 330 0/+0.5
3.50 330 0/+0.5   13.00 330 0/+0.5
4.00 330 0/+0.5   13.50 330 0/+0.5
4.50 +0/-0.008 330 0/+0.5   14.00 330 0/+0.5
5.00 330 0/+0.5   14.50 330 0/+0.5
5.50 330 0/+0.5   15.00 330 0/+0.5
6.00 330 0/+0.5   15.50 330 0/+0.5
6.50 330 0/+0.5   16.00 330 0/+0.5
7.00 330 0/+0.5   18.00 330 0/+0.5
7.50 330 0/+0.5   20.00 330 0/+0.5
8.00 +0/-0.009 330 0/+0.5   22.00 330 0/+0.5
8.50 330 0/+0.5   24.00 330 0/+0.5
9.00 330 0/+0.5   25.00 +0/-0.013 330 0/+0.5
9.50 330 0/+0.5   28.00 330 0/+0.5
10.00 330 0/+0.5   30.00 330 0/+0.5
          32.00 +0/-0.016 330 0/+0.5



General Tolerance for ground carbide rods

General tolerance for the h6 finished ground solid carbide rods
Diameter Tolerance μm   Length Tolerance   Straightness Tolerance   Circularity Tolerances
＜3.0 -6/0 ＜100.0 +0.5/+1.0 ＜4.0 0.07 <3,0 2,0 micron
3.0-6.0 -8/0 100.0-165.0 +1.0/+2.5 4.5-5.0 0.06 3,0- 6,0 2,5 micron
6.0-1.0 -9/0 165.0-335.0 +1.0/+6.0 5.5-12 0.05 6,1-10,0 3,0 micron
10.0-18.0 -11/0   ＞12.5 0.04 10,1-18,0 3,5 micron
18.0-30.0 -13/0   18,1- 30,0 4,0 micron
30.0-50.0 -16/0 30,1- 50,0 5,0 micron



General tolerance for the h5 finished ground solid carbide rods
Diameter Tolerance μm   Length Tolerance   Straightness Tolerance   Circularity Tolerances
＜3.0 -4/0 ＜100.0 +0.5/+1.0 ＜4.0 0.07 <3,0 2,0 micron
3.0-6.0 -5/0 100.0-165.0 +1.0/+2.5 4.5-5.0 0.06 3,0- 6,0 2,5 micron
6.0-1.0 -6/0 165.0-335.0 +1.0/+6.0 5.5-12 0.05 6,1-10,0 3,0 micron
10.0-18.0 -8/0   ＞12.5 0.04 10,1-18,0 3,5 micron
18.0-30.0 -9/0   18,1- 30,0 4,0 micron
30.0-50.0 -11/0 30,1- 50,0 5,0 micron


Our tungsten carbide rods:

  • 100% virgin material, no recycled material
  • Spray drying tower and HIP sintering furnace
  • Constant excellent quality
  • Large stock for all sizes, the regular products can be shipped in 3 days, and the special rods can be ground in one week.
  • 100% inspected before delivery. The inspection including raw material and dimension report will be sent you before delivery
  • Excellent grinding quality, Straightless and circularity could be 0.05 or 0.02.

Carbide grades

Cut To Length Ground Carbide Rods OD 6mm Length 150mm For Cast Iron 2

What we can provide



Cut To Length Ground Carbide Rods OD 6mm Length 150mm For Cast Iron 3

Cut To Length Ground Carbide Rods OD 6mm Length 150mm For Cast Iron 4

Cut To Length Ground Carbide Rods OD 6mm Length 150mm For Cast Iron 5
