Place of Origin: | China |
---|---|
Brand Name: | TGC |
Certification: | ISO 9001: 2015 |
Model Number: | Cemented Carbide Studs |
Minimum Order Quantity: | 10pc |
Price: | negotiable |
Packaging Details: | plastic box/box + Cartons |
Delivery Time: | Standard products in one week |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 5000kgs per month |
ISO Grade: | G40-G50 | Cobalt: | 18% |
---|---|---|---|
Hardness: | HRA 86.3-88.3 | T.R.S: | 2900-3100 |
Density: | 13.65-13.95 | Application: | High-Pressure Grinding Roll |
Diameter: | 16.55mm | Height: | 36mm |
High Light: | Hemispherical Top Tungsten Carbide Studs,18% Cobalt Tungsten Carbide Studs,16.55mm Tungsten Carbide Milling Bits |

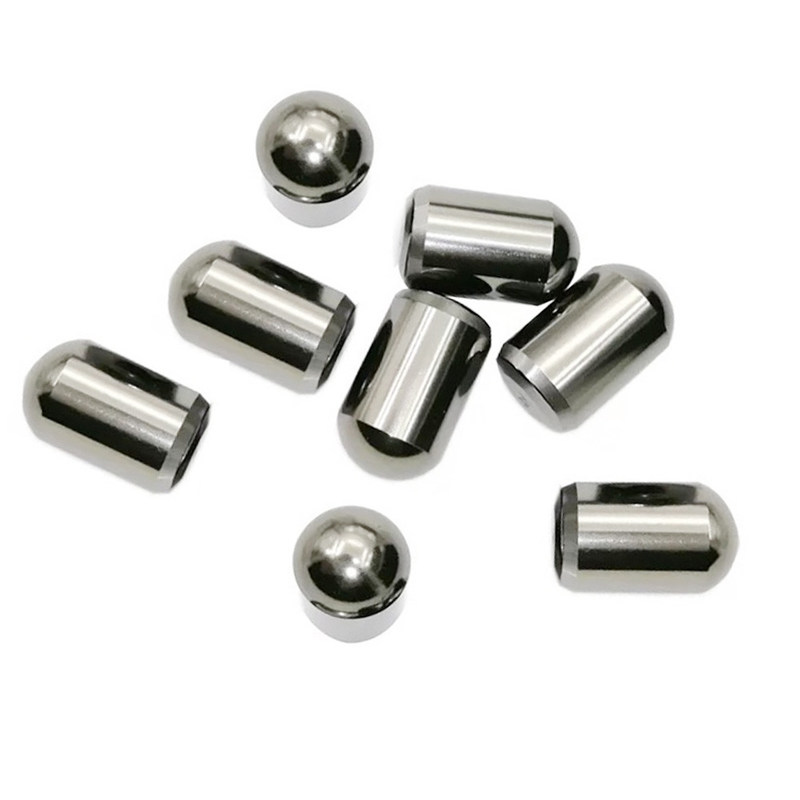

Hemispherical Top 16.55mm Tungsten Carbide Studs With 18% Cobalt High T.R.S Studs For Milling
Product details:
Material:
Cobalt: 18%
Density: 13.65-13.95
Hardness HRA 86.3-88.3
T.R.S 2900-3100
Outer diameter: 16.55mm
Height: 36mm
Regular sizes for tungsten carbide stud:
Diameter | Height | Dome | Chamfer E×R |
20 | 40 | SR10 | 2×R5.0 |
20 | 30 | SR10 | 2×R5.0 |
20 | 35 | SR10 | 2×R5.0 |
16 | 55 | SR8 | R2.0 |
16 | 50 | SR8 | R2.0 |
16 | 45 | SR8 | 2×R5.0 |
16 | 40 | SR8 | 2×R5.0 |
16 | 40 | SR8 | 1×R2.0 |
16 | 40 | SR8 | 1×45° |
16 | 35 | SR8 | R2.0 |
16 | 20.5 | SR8 | R2.0 |
10 | 22 | SR5 | R1.0 |
10 | 22 | SR5 | R1.5 |
10 | 20 | SR5 | R1.5 |
8 | 20 | SR4 | R1.0 |
1. Various sizes for grinding roller carbide pin have been on to the High pressing
2. Grinding roller, its attachment on the high pressing
3. It can help the surface to use more extended time. This is the abrasive wear-resistant stud for the grinding roller.
HPGR or high-pressure grinding rolls have made extensive progress in non-ferrous metal mining. The technology is now widely seen as an alternative to primary milling, with a number of large units coming into use in recent years. Following these developments, HPGR-based circuit configurations are often the base case for certain ore types, such as very hard abrasive ores.
